ECHO Mining Egypt
Leader in Industrial Raw Minerals
MISSION
We offer a full integrated exploration, drilling and mining services in an economical and professional manner and to develop and support every aspect of our business with the highest level of integrity remain dedicated to our clients as business partners.
VISION
ECHO Mining; to be seen as the superior level in exploration, drilling, engineering and mining services and to be elevated by our customers as the best business partner.
We say what we do and do what we say.
We mine, process and sell industrial minerals, focused primarily on silica sand, Limestone, K feldspar, Iron Ore, Quartz & Others.
Founded
2014
Capacity
25K Tons Month
Employees
50
Warehouses
Damietta, Soukhna & Adabya Ports
Quarries
Zafraana, Red Sea
Reserve
5M Tons
Who we do it for?
We offer high-quality mineral products from high mines & Plants.
The technical expertise of our teams enable us to extract and transform minerals responsibly and in a sustainable way over the long term.
Minerals Portfolio

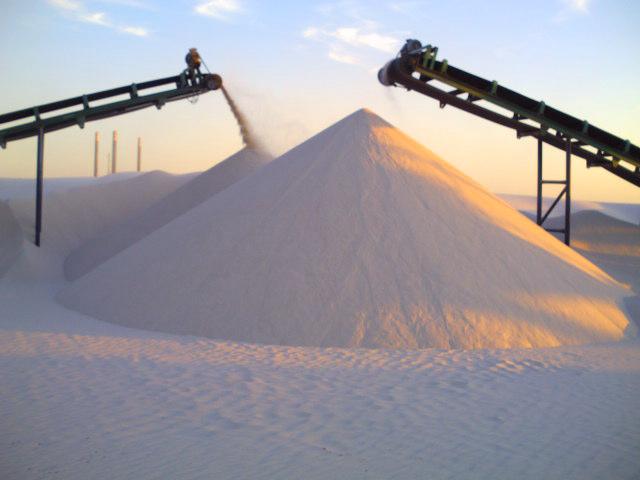

Silica Sand
- Silica Sand – EC 120 | EC 200 | EC 250 | EC 500
| EC 100 | EC 120 | EC 140 | EC 250 | EC 500 | |
| SiO2 | 99.50-99.75 | 99.40-99.65 | 99.30-99.60 | 99.30-99.60 | 99.30-99.60 |
| Fe2O3 | 0.008 -0.010 | 0.010 -0.012 | 0.011 -0.014 | 0.020 -0.025 | 0.035 -0.050 |
| Cr2O3 | 0.0002 Max | 0.0003 Max | 0.0004 Max | 0.0006 Max | 0.001 Max |
| TiO2 | Traces | Traces | Traces | Traces | Traces |
| Al2O3 | 0.1-0.20 | 0.10-0.25 | 0.10-0.30 | 0.10-0.30 | 0.20-0.50 |
| CaO | 0.02-0.05 | 0.02-0.05 | 0.02-0.05 | 0.02-0.05 | 0.02-0.10 |
| MgO | 0.002-0.005 | 0.002-0.005 | 0.002-0.005 | 0.002-0.005 | 0.002-0.005 |
| L.O.I | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.3 | 0.1-0.5 |
| 0.6 mm | 0.8 mm | |
| + 0.850 mm | Trace | 0.00 – 0.50 Max |
| + 0.600 mm | 0.00 – 0.5 Max | 2.00 – 6.00 |
| + 0.400 mm | 10.00 – 20.00 | 10.00 – 20.00 |
| + 0.150 mm | 78.00 – 85.00 | 40.00 – 55.00 |
| + 0.125 mm | 13.00 – 17.00 | 25.00 – 40.00 |
| Below | 2.00 – 3.00 | 2.00 – 3.00 |

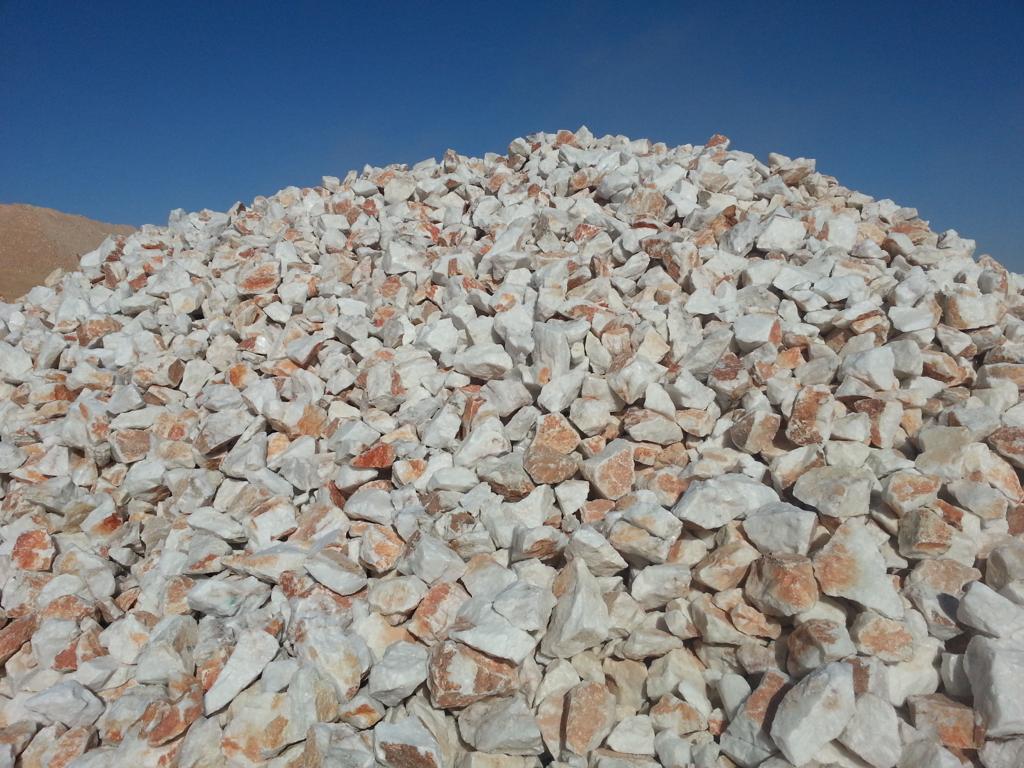

Quartz
EC 150
| Constituent | Results % |
|---|---|
| SiO2 | 99.70 |
| Fe2O3 | 0.015 |
| Al2O3 | 0.12 |
| CaO | 0.005 |
| TiO2 | 0.001 |
| Na2O | 0.04 |
| K2O | 0.05 |
| L.O.I | 0.10 |

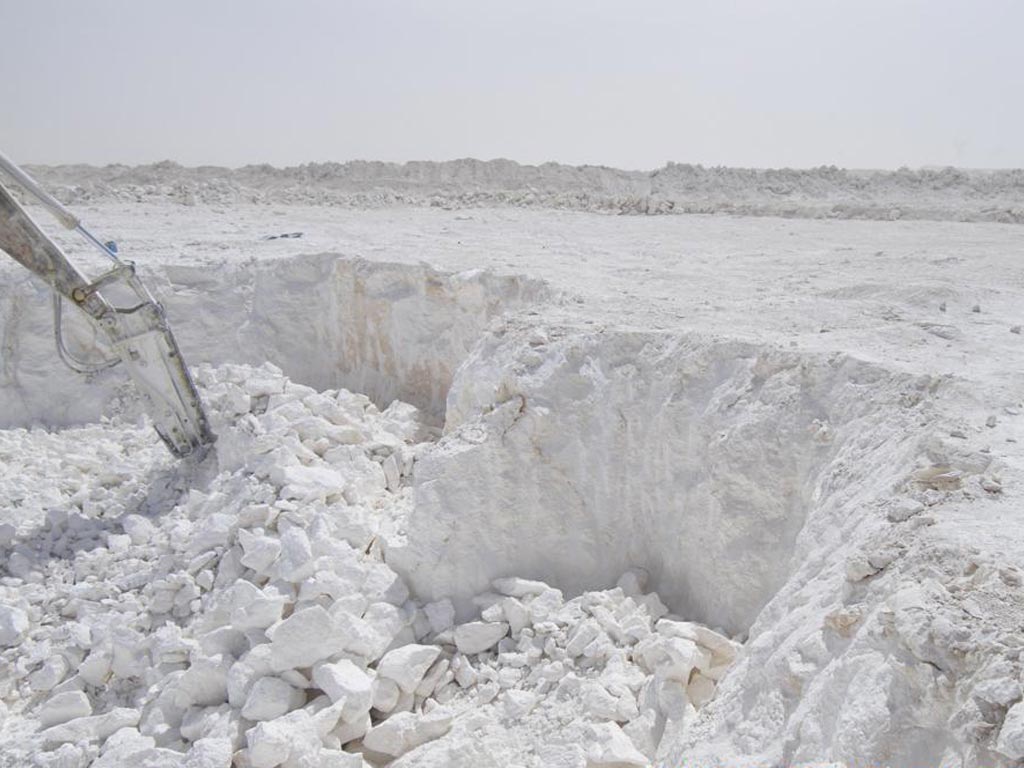

Limestone
EC 100
| SiO2% | AL2O3% | CaO% | MgO% | Fe2O3% | LOI % |
|---|---|---|---|---|---|
| 0.1786 | 0.007 | 56.62 | 0.154 | 0.008 | 43.100 |
| 0.1857 | 0.009 | 56.645 | 0.152 | 0.009 | 43.330 |
| 0.1579 | 0.011 | 56.283 | 0.149 | 0.007 | 43.700 |
| Min | 0.007 | 56.283 | 0.149 | 0.007 | 43.100 |
| Max | 0.011 | 56.645 | 0.154 | 0.009 | 43.700 |
| AVG | 0.009 | 56.517 | 0.152 | 0.008 | 43.377 |
| STDEV | 0.002 | 0.203 | 0.002 | 0.010 | 0.303 |

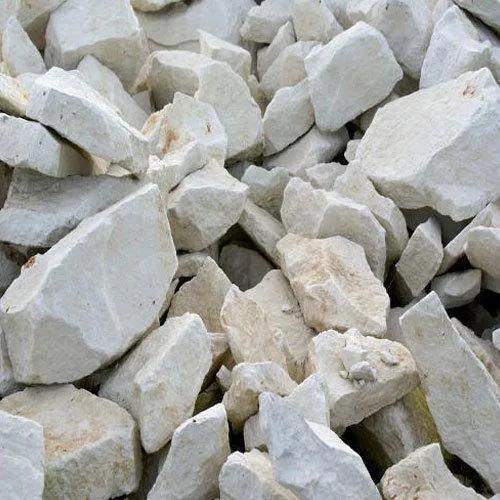

Potassium Feldspar
K-Feldspar – EC 11-14
K-Feldspar – EC 08-11 %
| Constituent | EC 11-14% | EC 08-11 % |
|---|---|---|
| Na2O | 1.50 – 3.00 | 1.50 – 3.00 |
| MgO | 0.10-0.50 | 0.30-0.70 |
| Al2O3 | 17.00 – 19.50 | 17.00 – 19.50 |
| SiO2 | 63.00 – 65.00 | 63.00 – 68.00 |
| SO3 | 0.03 – 0.05 | 0.03 – 0.08 |
| CaO | 0.17 – 0.20 | 0.17 – 0.20 |
| K2O | 11.50 – 14.50 | 8.00 – 11.50 |
| Fe2O3 | 0.10 – 0.20 | 0.30 – 0.70 |
| Cl | 0.01 – 0 .02 | 0.01 – 0 .04 |
| L.O.I | 0.30 – 1.00 | 0.30 – 1.00 |

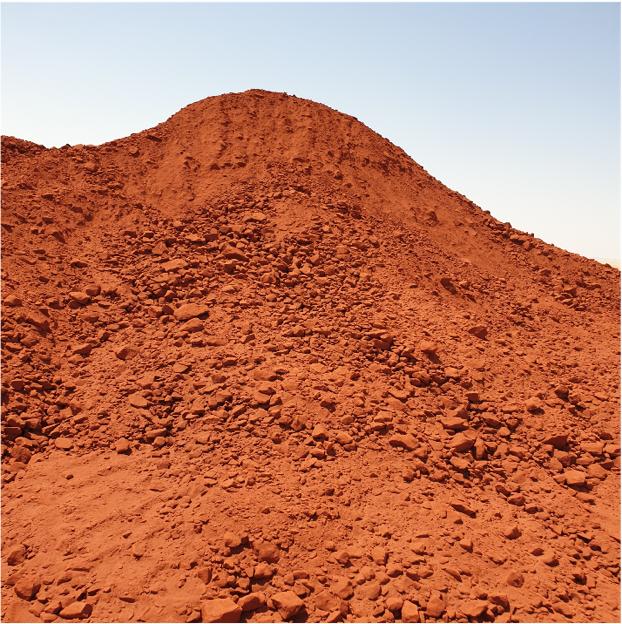

Iron Ore
Iron Ore – EC ≥70%
| Constituent | Results % |
|---|---|
| SiO2 | ≤10.00 |
| Al₂O₃ | ≤5.00 |
| TFe | ≥49 |
| Fe₂O₃ | ≥70 |
| Sulfur (S) | ≤0.8 |
| Phosphorus (P₂O₅) | ≤0.7 |
| Zinc (Zn) | ≤0.3 |
| Titanium (Ti) | ≤0.50 |
| Alkali Metal (K₂O+Na₂O) | ≤0.7 |
| Chlorine (CL) | ≤0.7 |
Health & Safety
We believes that the health and safety of our employees is of prime importance to the success of our operations.
We are committed to conduct our operations in a safe and productive manner that will not harm our people or endanger their life.
Frequently Asked Questions
Who is Echo Mining Egypt?
ECHO Mining; to be seen as the superior level in exploration, drilling, engineering and mining services and to be elevated by our customers as the best business partner.
Who we do it for?
- Glass
- Ceramic & Sanitary Ware
- Paper & Board
- Energy
- Sports Surface
How we create value?
ECHO Mining, offers a distinctive value proposition to its customers.
Markets & Customers are our innovative force.
In-depth application & minerals knowledge.
Strong processing & capabilities
Unique access to resources.
High differentiated value to our customers.
What is our mission?
ECHO Mining; offer a full integrated exploration, drilling and mining services in an economical and professional manner and to develop and support every aspect of our business with the highest level of integrity remain dedicated to our clients as business partners.
What is our Global supply capabilities?
Our teams are engage in processing and sales after directly gathering information on the needs of customers in served markets .
We will continue to expand this network in the future so as to supply products to customers in various countries and regions around the world.
Health & Safety?
We believes that the health and safety of our employees is of prime importance to the success of our operations.
We are committed to conduct our operations in a safe and productive manner that will not harm our people or endanger their life.
Contact Us
Do you have any questions? Write and our specialists will answer you.
